So you are thinking of getting an air compressor? You are probably wandering whether it’s worth the cost of purchasing one. Most probably you already have a couple of ideas as to why you need the air compressor in the first place, but what else might you use it for?
|What can I use an air compressor for?|
|Inflation (eg. tires, dinghies, basketballs, pool-side accessories, air mattresses etc)|
|Powering air tools (Nailers, Impact Wrenches, Sanders, Grinders, and lots more)|
|Cleaning of work-surface areas of debris (eg. sawdust)|
|Dusting off sensitive or inaccessible areas of electronic equipment, vacuum cleaners, cars, etc|
|Air brush painitng|
|Spray painting, Spraying weedkillers, etc|
|Blowing out water lines (eg. winterizing sprinkler or pool systems)|
As you can see, an air compressor is a pretty useful bit of kit to have around the home as well as the workshop, but how does one go about choosing the right compressor, given that there are so many ‘shapes and sizes’ out there?
How do I choose the right air compressor for me?
Parameters to focus on
There are four main parameters that are good to know about when choosing an air compressor, however, you really only need to be aware of the first two characteristics (below) to choose the correct air compressor for you.
1. Cubic Feet per Minute (cfm)
The most critical parameter to understand is the measure of airflow or air volume delivered by a compressor given in cubic feet per minute – or ‘cfm‘ – (‘cfm’ is sometimes mistakenly written as ‘scfm’ (standard cubic feet per minute) which is actually something slightly different. But for all intents and purposes, unless it is clearly meant to be ‘scfm’, you can assume that what was really meant was ‘cfm’).
2. Pounds per Square Inch (psi)
The second most important parameter to understand is the measure of air pressure delivered by the air compressor given in pounds per square inch – or ‘psi‘.
3. Tank size
This is the measure of the volume of the tank that holds the compressed air. Compressors sometimes come with more than one tank connected together but the number of tanks is actually irrelevant since the total volume is what counts.
4. Horsepower rating
This is the measure of the power of the compressor motor. Essentially, the higher the horsepower, the faster the compressed air tank is refilled.
Now that we are all up to speed….
Different air compressor-related activites require different types of air tools. Each air tool is rated for the air volume (cfm) that it consumes when operating and the air pressure (psi) that it requires in order to function properly (these cfm and psi values are usually provided by the air tool manufacturer although sometimes it is ‘common’ knowledge as to the pressure the air tool should be operated at and it is sometimes omitted). So ultimately, what it comes down to is determining which air tools you want the compressor to be able to operate, and once you know that, then choosing the compressor is simply a matter of getting one that can produce the airflow and air pressure needed.
In fact, it is even simpler than that! Effectively, all air tools will operate within either of TWO ranges of air pressures, namely the lower range of approximately 40 psi and an upper range centered around 90 psi. For example, spray painting guns operate within the lower range of air pressures whereas air nailers operate within the higher pressure range due to the force required to drive nails through a workpiece.
|Air Tools||Air Flow Range||Air Pressure RANGE|
|Air staple gun||1.8 cfm||90 psi|
|Air nailers||2.2 cfm||90 psi|
|Air impact wrenches||5-9 cfm||90 psi|
|Air sprayer||7.8 - 11.5 cfm||40 psi|
|Air sanders||4 - 16 cfm||90 psi|
|Air angle grinders||7.5 - 30 cfm||90 psi|
A word about air tool cfm ratings
Different types of air tools consume air in different ways. Some require continuous airflow for an extended period of time as with air sanders, while other types of air tools are active intermittently for short bursts, for example, air nail guns. This has important implications for air tool manufacturer cfm ratings, since in order to provide a realistic air volume consumption for the tool, they have to make certain assumptions on how active the tool will be in the hands of the owner, and this is usually provided in the form of the ‘average air consumption’ which is what the cfm rating that you normally see actually refers to. Air tool manufacturers make different assumptions for different types of air tools. So for example, the average air consumption for air nailers is usually calculated on the basis that 30 nails are fired within the space of one minute. In the case of air impact wrenches, manufacturers usually assume that the wrench will be active and consuming air for 20-25% of the time, or thinking of it another way, they will be used in short bursts for a total of 12-15 seconds within any one minute period. Consequently, when looking to choose an air compressor for that air tool, in order to cover higher than expected potential activity levels of that air tool, a good rule of thumb is to always increase the rated cfm value provided by the manufacturer by 20-50% to ensure the chosen compressor can provide sufficient airflow for higher than expected levels of tool use. On the other hand, if you are sure that you will use an air tool at a lower activity level than the average assumption for that air tool, then you can get away with an air compressor that has a lower cfm rating. To make things easier, air tool calculators have been incorporated on individual air tool pages on this website as well as in the sidebar allowing you to estimate your likely tool usage levels and to derive a more accurate picture of the air volume required from future compressor.
And now for the compressor….
The vast majority of compressors can generate pressures in excess of the upper 90 psi range so we usually don’t have to worry about whether the compressor is able to produce the desired pressure. However, the airflow or cfm that a compressor can sustainably produce will be different at different air pressures. For example, compressor X producing air at 90 psi, might be rated to sustain production of 2 cfm of air volume, while at 40 psi it might be designed to sustain 3 cfm of airflow. Consequently, manufacturers generally provide two cfm ratings for their compressors, one at 40 psi and the other at 90 psi.
Therefore all we have to do to choose the right compressor is simply identify which pressure range the air tool normally functions at, and then choose a compressor whose rated airflow at that pressure range is equal to or exceeds the airflow consumed by the air tool in question. For example, an air sprayer might consume 4 cfm at 40 psi, so a compressor with a rating equal to or greater than 4 cfm at the 40 psi pressure range should function properly with this particular air spray gun.
It should be noted that although compressors can run air tools that consume more air volume than the compressor is designed to provide, it will either be for too short a period for the tool to be used effectively before the air tank runs out, or the compressor will run longer than it was designed for, potentially over-working the motor, causing it to heat up and to fail prematurely.
Top Portable Air Compressors
|Air Compressor||@ 90psi (cfm)||@ 40psi (cfm)||Maximum Air Pressure (psi)||Air Tank Volume (gallon)||Motor Power (hp)||Noise Level (db)||Weight (lbs)||Oil|
|Senco PC1010||0.7||1.0||125||1||0.5||69||20 lbs||no|

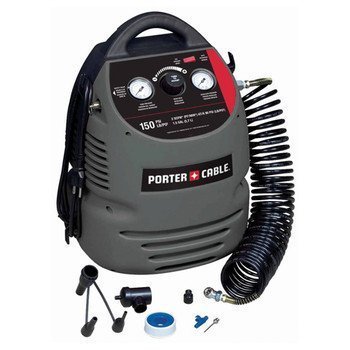

|PORTER-CABLE CMB15||2.0||3.0||150||1.5||79||20 lbs||no|
|PORTER-CABLE PCFP02003||2.0||3.1||135||3.5||0.8||82||26 lbs||no|
|California Air Tools CAT-6310||2.35||3.8||120||6.3||1||60||49 lbs||no|
|California Air Tools CAT-1610A||2.35||3.8||120||1.6||1||60||35 lbs||no|
|Rolair JC10||2.35||3.8||125||2.5||1||60||39 lbs||no|
|BOSTITCH CAP1512-OF||2.8||3.7||150||1.2||1.5||90||22 lbs||no|
|DEWALT DWFP55130||3.0||200||2.5||71.5||36 lbs||no|
|Makita MAC2400||4.2||4.8||130||4.2||2.5||79||77 lbs||yes|
|California Air Tools CAT-10020||5.3||7.0||125||10||2||70||110 lbs||no|
|Makita MAC5200||6.5||6.9||140||5.2||3||90||88 lbs||yes|
Top Stationary Air Compressors
|Air Compressor||@ 90psi (cfm)||@ 40psi (cfm)||Maximum Air Pressure (psi)||Air Tank Volume (gallon)||Motor Power (hp)||Type|
|Campbell Hausfeld VT6275||10.2||135||60||3.2||Single-stage|
|Ingersoll Rand SS3L3||11.3||135||60||3||Single-stage|
|Industrial Air ILA3606056||11.5||13.4||155||60||3.7||Single-stage|
|Campbell Hausfeld HS5180||14||175||80||5||Two-stage|
